Vehicle dimensions

Here you can find your vehicle's measurements, such as length and height.

Locate the measurement you're looking for in the images first, then check the corresponding letter in the table below.

Vehicle, side view with dimensions

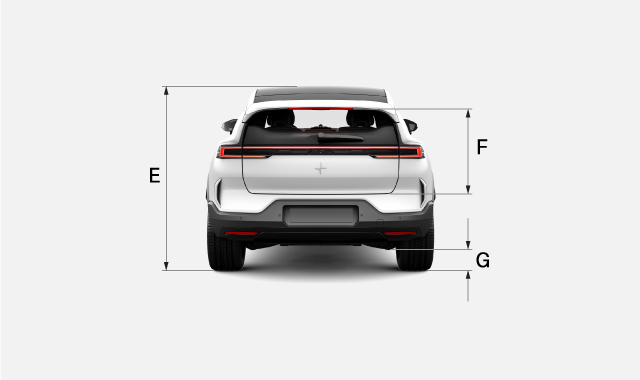

Vehicle, rear view with dimensions

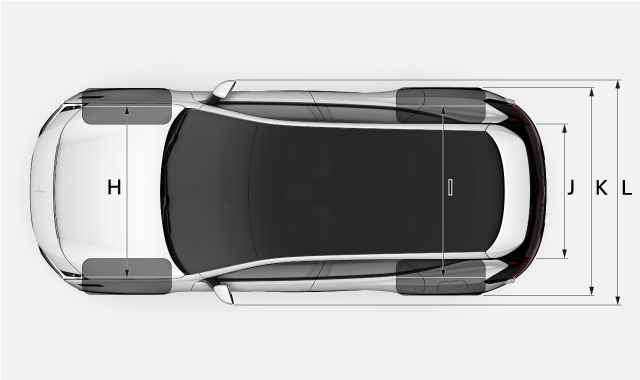

Vehicle, top view with dimensions
MeasurementMillimetersInches
ALoad length, floor, folded seat187974.0
BLoad length, floor101640.0
CWheelbase2985117.5
DLength4900192.9
EHeight1

16272

16283

64.12

64.13

FLoad height63625.0
GGround clearance, front axle1

2122

2183

8.32

8.63

Ground clearance, rear axle1

2122

2153

8.32

8.53

HFront track14

1673–1677

65.9–66.0

IRear track14

1667–1678

65.6–66.1

JLoad width, floor106341.9
KWidth196877.5
LWidth including folded-out wing mirrors212083.5
  1. 1 At curb weight plus one person.
  2. 2 Applies to vehicles with air suspension.
  3. 3 Applies to vehicles with coil suspension.
  4. 4 At curb weight plus two people.
